MAGNETIC BED
Horizontal Magnetic Clamping Bed
Large-area workholding surface suitable for horizontal clamping applications where multiple magnetic poles provide distributed holding across the workpiece.
Customized magnetic workholding solutions for horizontal clamping in drilling, milling and machining applications.
Versatile Automation supports magnetic chuck controller systems and magnetic beds designed around machine-tool workholding requirements.
Reference images illustrating magnetic clamping-bed construction and magnetic workholding during milling. Final system selection and engineering depend on the machine, workpiece, material and required holding arrangement.
Large-area workholding surface suitable for horizontal clamping applications where multiple magnetic poles provide distributed holding across the workpiece.

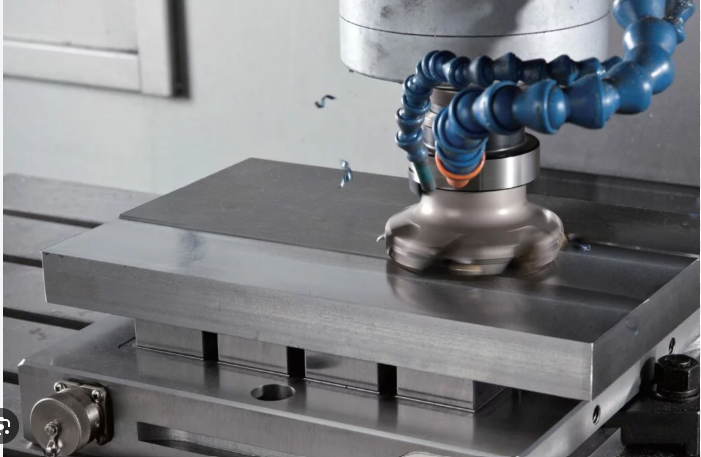

Reference machining application showing unobstructed top-surface access for the cutting tool while the component is held from below.
Control electronics and operator interfaces for magnet activation/release, status indication and safety interlocks.
Workholding surfaces selected or engineered for the required machine bed size, component geometry and application.
Integration with existing drilling and milling machines, including control-panel wiring and machine-ready signals.
Share machine type, bed size, workpiece dimensions, material and required holding arrangement for technical evaluation.
